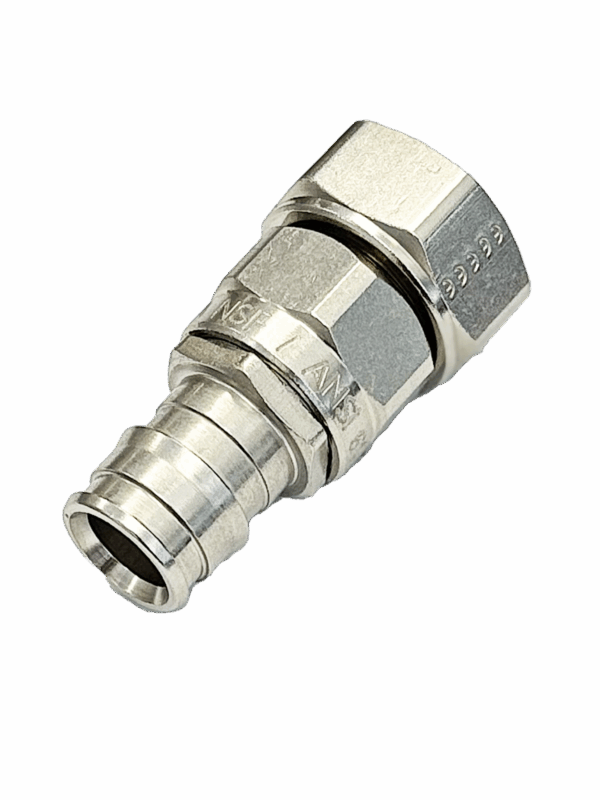

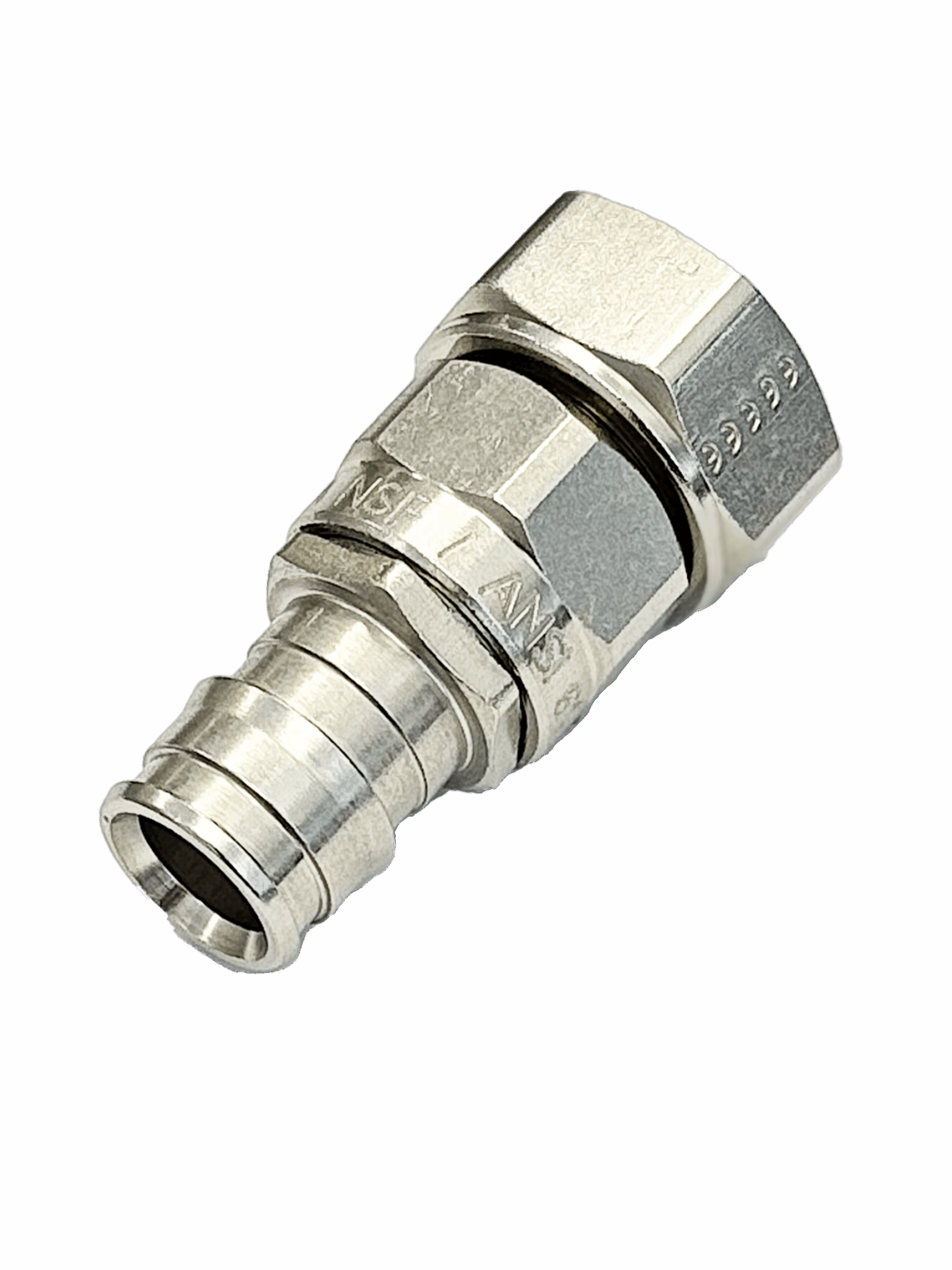

Adapters 510-PRPX3-43
| Description | 1/2 Cold Expansion x 5/8 OD Female Compression |
|---|---|
| Product Type | Adapter |
| Inlet Pipe Type | Cold Expansion |
| Outlet Pipe Type | Copper |
dahl can produce thousands of models of common and specialty end-of-line adapters.
Need something special? Just ask for it and it will ship from dahl .
Every fitting is tested before leaving our factory.
Specifications
| Material | Lead-Free Brass |
|---|---|
| Pattern | Straight |
| Finish | Plated |
| Operation | Adapter |
| Inlet Size | 1/2 |
| Inlet Connection | Cold Expansion (F1960) |
| Outlet Size | 5/8 OD |
| Outlet Connection | 5/8 OD Fem. Comp |
| Box / Case | 24 / 144 |
| Inlet | PRPX3 |
| Outlet | 43 |
Instructions
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
F1960 COLD EXPANSION CONNECTION FOR PEX-A ONLY: Follow tube manufacturer’s instructions. Warning: Do not attempt to use PEX connections with Poly-B tubing or vice versa.
FEMALE COMPRESSION: Do not use pipe dope or PTFE tape. Tighten firmly with small wrench. DO NOT OVER-TIGHTEN.
Certifications
- CSA
- UPC
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
