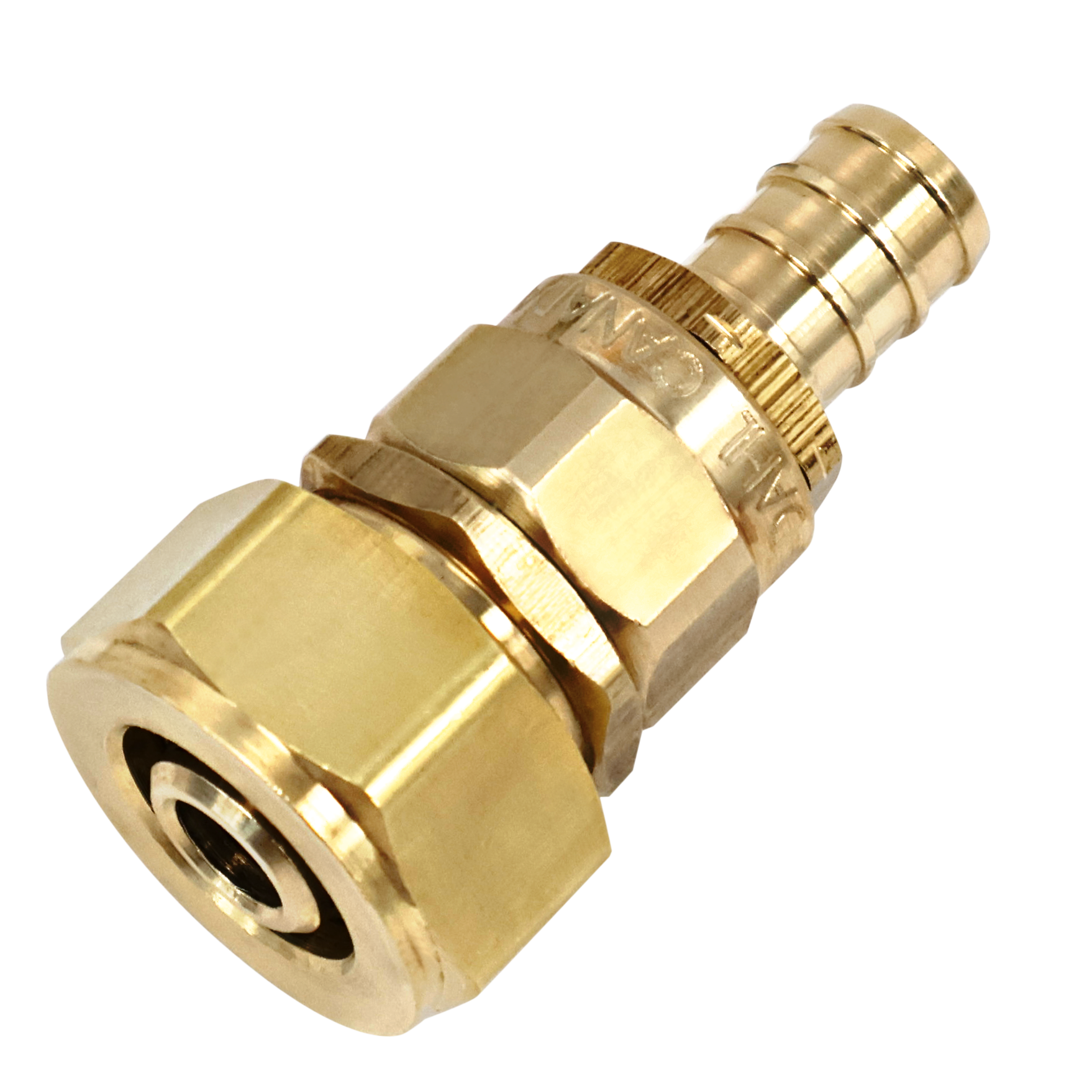

Adapters 520-K3-PX3
| Description | 1/2 PEX-AL-PEX Comp X 1/2 Crimpex |
|---|---|
| Product Type | Adapter |
| Inlet Pipe Type | PEX-AL-PEX |
| Outlet Pipe Type | PEX |
Specifications
| Material | Lead-Free Brass |
|---|---|
| Inlet Size | 1/2 |
| Pattern | Straight |
| Inlet Connection | PEX-AL-PEX Comp |
| Finish | Rough Brass |
| Outlet Size | 1/2 |
| Inlet | K3 |
| Outlet Connection | PEX Crimp |
| Outlet | PX3 |
| Box / Case | 24 / 144 |
Instructions
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
KITEC®, PEX-AL-PEX, or Multicore for Crimp or Compression: Follow pipe manufactuer's instructions.
CRIMPEX (Crimp for PEX): Follow tube manufacturer's instructions. Warning: Do not attempt to use PEX connections with Poly-B tubing or vice versa.
ASTM
- ASTM F1807
- ASTM F1974
Certifications
- CSA
- UPC
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
