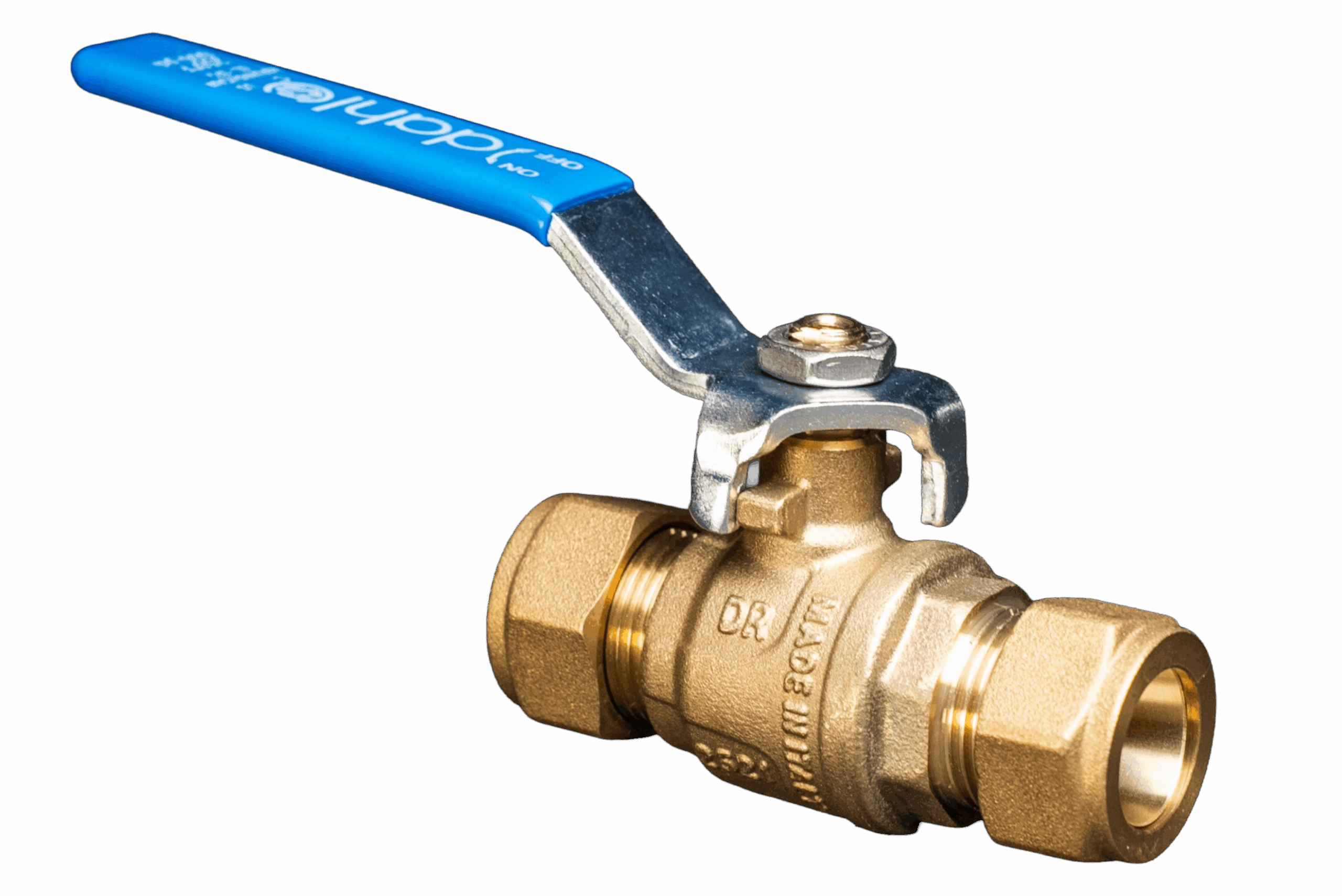

Full Port Ball Valves 500-050-SH-CC
| Description | 1/2 Comp x 1/2 Comp |
|---|---|
| Product Type | Full Port Ball Valve |
| Inlet Pipe Type | Copper |
| Outlet Pipe Type | Copper |
Features & Benefits:
Lead-Free Brass Construction: Dezincification-resistant, lead-free, and sustainable for long-term reliability and safety.
Premium Ball Finish: Ensures superior abrasion and corrosion resistance, extending valve life.
Key Applications:
- Water Supply Systems
- Hydronic Heating Systems
- Plumbing Fixtures
- Irrigation Systems
- Potable Water Systems
For Water Applications Only
Specifications
| Material | Lead-Free Brass |
|---|---|
| Pattern | Straight |
| Finish | Rough Brass |
| Operation | Plastified Zinc Plated Steel Handle |
| Inlet Size | 1/2 |
| Inlet Connection | Comp |
| Outlet Size | 1/2 |
| Outlet Connection | Comp |
| Box / Case | 10/100 |
Instructions
KEEP IN PACKAGING until installation to remain free of debris. Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
COPPER COMPRESSION:
Do not use pipe dope or PTFE tape. Pipe must be clean, de-burred, round, & cut square. Slide nut, then ring, then valve onto pipe. Ensure proper positioning of nut and ring. Tighten firmly with small wrench. DO NOT OVER-TIGHTEN.
APPROVED PIPE:
Hard drawn copper only ASTM B88 types K, L, M.
