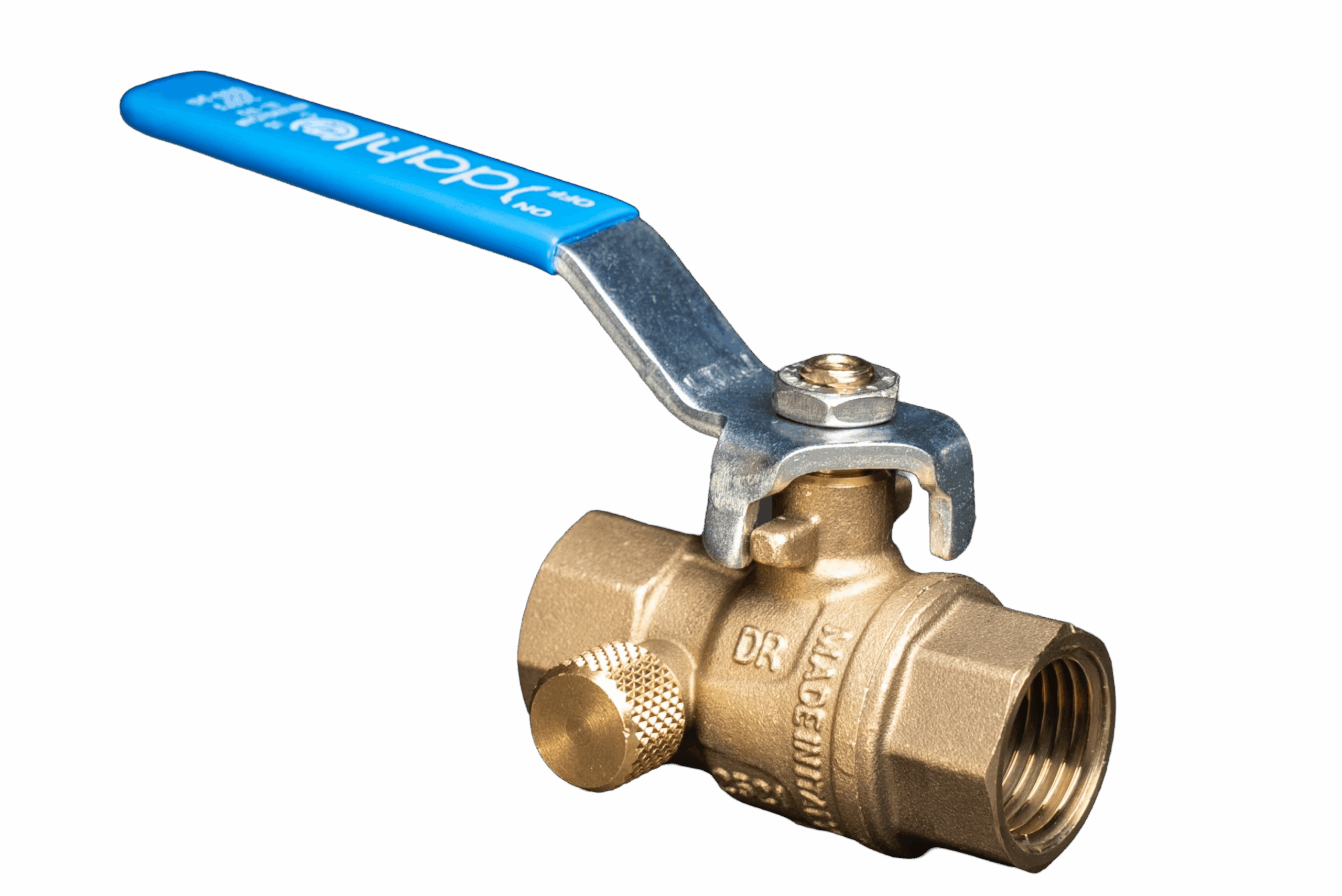

Full Port Ball Valves 500-050-SH-FF-D
| Description | 1/2 FIP x 1/2 FIP w/Drain |
|---|---|
| Product Type | Full Port Ball Valve |
| Inlet Pipe Type | Iron |
| Outlet Pipe Type | Iron |
Features & Benefits:
Lead-Free Brass Construction: Dezincification-resistant, lead-free, and sustainable for long-term reliability and safety.
Premium Ball Finish: Ensures superior abrasion and corrosion resistance, extending valve life.
Key Applications:
- Water Supply Systems
- Hydronic Heating Systems
- Plumbing Fixtures
- Irrigation Systems
- Potable Water Systems
For Water Applications Only
Specifications
| Material | Lead-Free Brass |
|---|---|
| Pattern | Straight |
| Finish | Rough Brass |
| Operation | Plastified Zinc Plated Steel Handle |
| Inlet Size | 1/2 |
| Inlet Connection | FIP |
| Outlet Size | 1/2 |
| Outlet Connection | FIP |
| Box / Case | 10/100 |
Instructions
KEEP IN PACKAGING until installation to remain free of debris. Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
FNPT THREAD CONNECTION: Clean pipe threads and cover them with pipe dope or PTFE tape. Tighten firmly while gripping hex on end of valve. DO NOT OVER-TIGHTEN.
