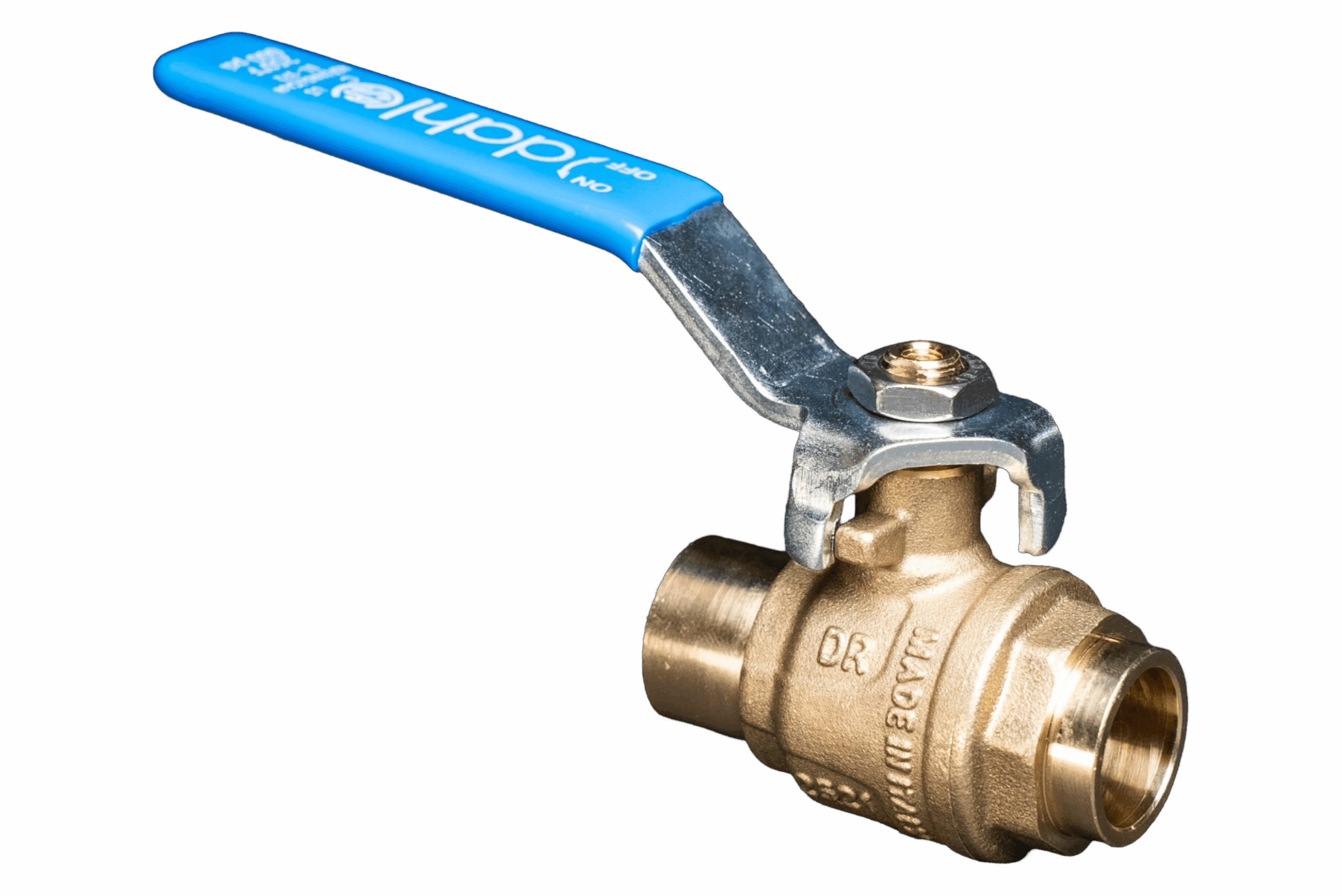

Full Port Ball Valves 500-050-SH-SS
| Description | 1/2 Fem. Solder x 1/2 Fem. Solder |
|---|---|
| Product Type | Full Port Ball Valve |
| Inlet Pipe Type | Copper |
| Outlet Pipe Type | Copper |
Features & Benefits:
Lead-Free Brass Construction: Dezincification-resistant, lead-free, and sustainable for long-term reliability and safety.
Special Proprietary Coating on the Ball: Ensures superior abrasion and corrosion resistance, extending valve life.
Specifications
| Material | Lead-Free Brass |
|---|---|
| Pattern | Straight |
| Finish | Rough Brass |
| Operation | Plastified Zinc Plated Steel Handle |
| Inlet Size | 1/2 |
| Inlet Connection | Fem. Solder |
| Outlet Size | 1/2 |
| Outlet Connection | Fem. Solder |
| Box / Case | 10/100 |
Instructions
KEEP IN PACKAGING until installation to remain free of debris. Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
FEMALE SOLDER:
Do not dismantle valve – solder in open position. Clean pipe and valve socket with fine emery cloth and apply flux to both. Pipe must be square and bottomed in socket. DO NOT overheat the valve. DO NOT re-position valve after soldering. Clean with water and dry. Let cool before operating.
APPROVED PIPE:
Hard drawn copper only ASTM B88 types K, L, M.
Certifications
- CSA
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
