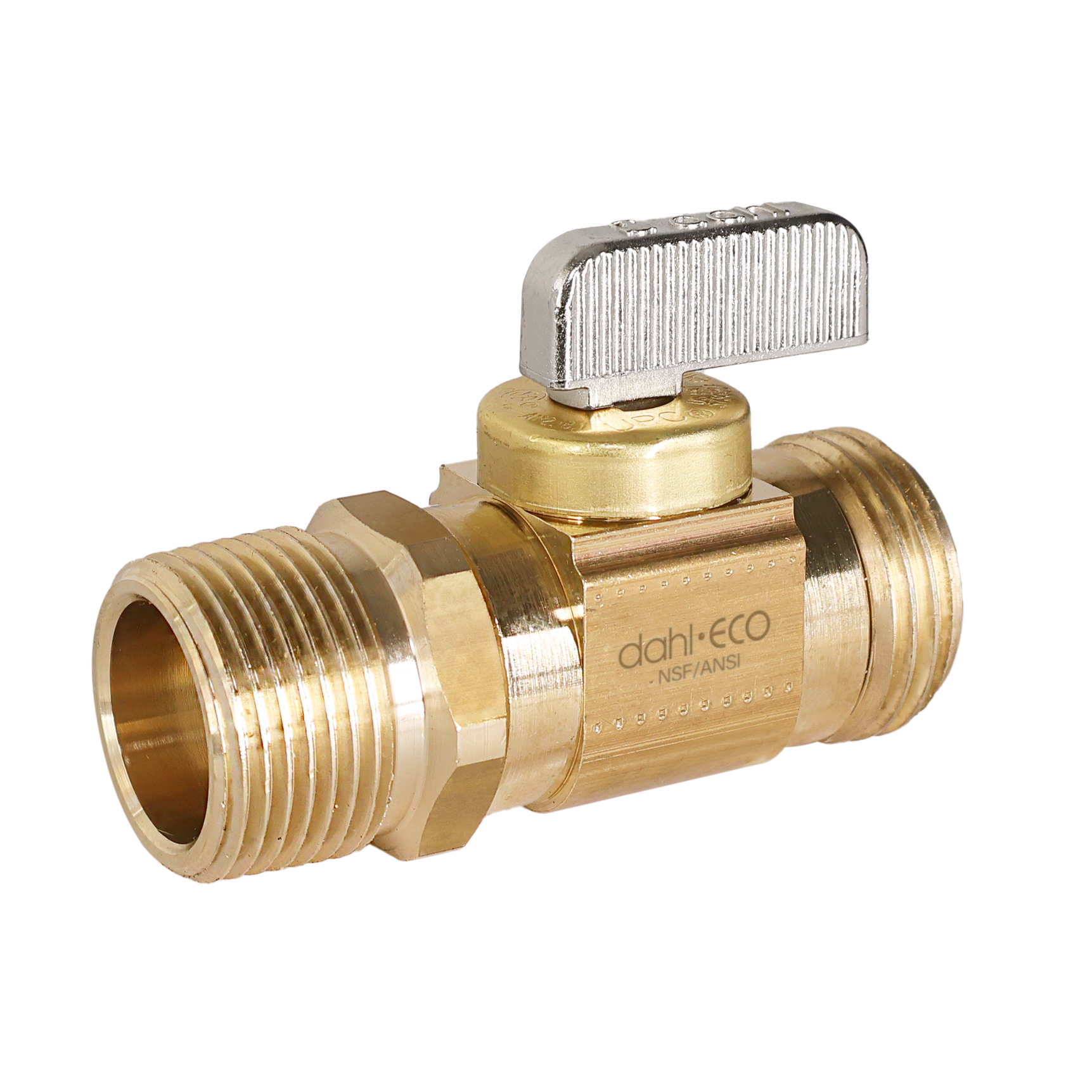

In-Line Stops & Isolation 521LB-64-04
| Description | 3/4 MIP X Male Hose, Large Bore |
|---|---|
| Product Type | Stop & Isolation Valve |
| Inlet Pipe Type | Iron |
| Outlet Pipe Type | Hose |
Specifications
| Material | Lead-Free Brass |
|---|---|
| Inlet Size | 3/4 |
| Pattern | Straight |
| Inlet Connection | MIP |
| Finish | Rough Brass |
| Operation | Plated Handle |
| Inlet | 64 |
| Outlet Connection | Male Hose |
| Outlet | 4 |
| Box / Case | 12 / 72 |
Instructions
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
NPT THREAD: Clean pipe threads and cover them with pipe dope or PTFE tape. Tighten firmly while gripping hex on end of valve. DO NOT OVER-TIGHTEN.
HOSE: Tighten firmly. DO NOT OVER-TIGHTEN.
Certifications
- CSA
- UPC
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
