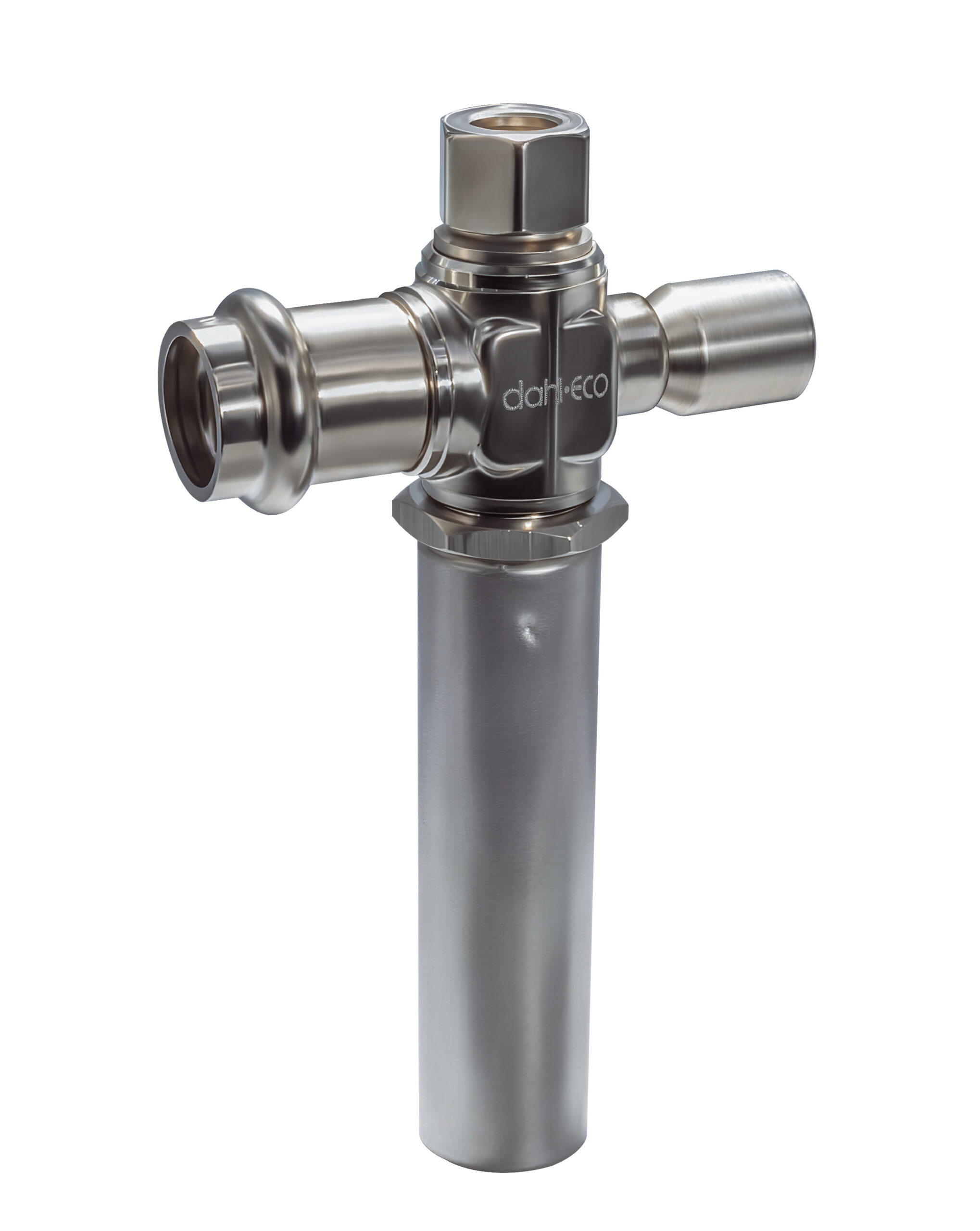

Press Valves 616SS-FP3-31-WHA
| Description | 1/2 Female Press X 3/8 OD Comp, Angle, Plated, with Water Hammer Arrester |
|---|---|
| Product Type | Supply Stop with Integral Water Hammer Arrestor |
| Inlet Pipe Type | Copper |
| Outlet Pipe Type | Copper |
dahl valves and fittings are designed and manufactured in Canada, and backed by our lifetime transferable warranty.
Made with 100% North American materials, specifically with premium quality US lead-free brass, every dahl valve is tested for quality before leaving the plant.
More than a valve, dahl offers a lifetime of reliability.
Specifications
| Material | Lead-Free Brass |
|---|---|
| Pattern | Angle |
| Finish | Plated |
| Operation | Loose Key with Screwdriver Slot |
| Inlet | FP3 |
| Inlet Size | 1/2 |
| Inlet Connection | Female Press |
| Outlet | 31 |
| Outlet Size | 1/4 |
| Outlet Connection | 3/8 OD Comp |
| Box / Case | 24 / 144 |
Certifications
- CSA
- UPC
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
