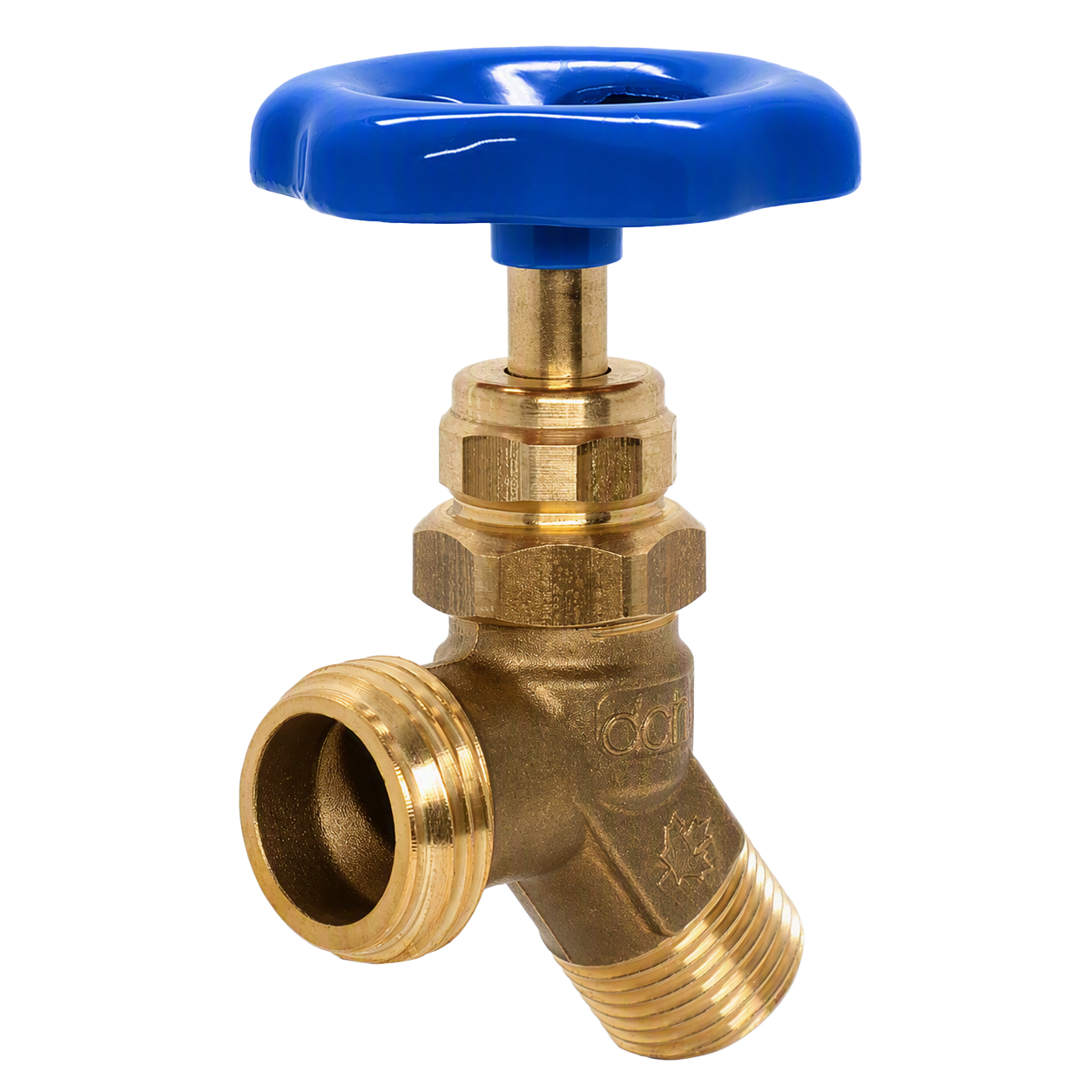

Sediment Faucets E2316-405
| Description | E2316 1/2 MIP or 1/2 Female Solder x Male Hose, Blue Handle |
|---|---|
| Product Type | Sediment Faucet |
| Inlet Pipe Type | Iron |
| Outlet Pipe Type | Hose |
Specifications
| Material | Lead-Free Brass |
|---|---|
| Inlet Size | 1/2 |
| Pattern | Angle |
| Inlet Connection | MIP or 1/2 Fem. Solder |
| Finish | Rough Brass |
| Outlet Connection | Male Hose |
| Box / Case | 12 / 72 |
Instructions
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
NPT THREAD: Clean pipe threads and cover them with pipe dope or PTFE tape. Tighten firmly while gripping hex on end of valve. DO NOT OVER-TIGHTEN.
FEMALE SOLDER: Do not dismantle valve – solder in open position. Clean pipe and valve socket with emery cloth, & apply flux to both. Pipe must be square and bottomed in socket. DO NOT re-position valve after soldering. Clean with water and dry. Let cool before operating.
HOSE: Tighten firmly. DO NOT OVER-TIGHTEN.
Certifications
- CSA
- UPC
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
