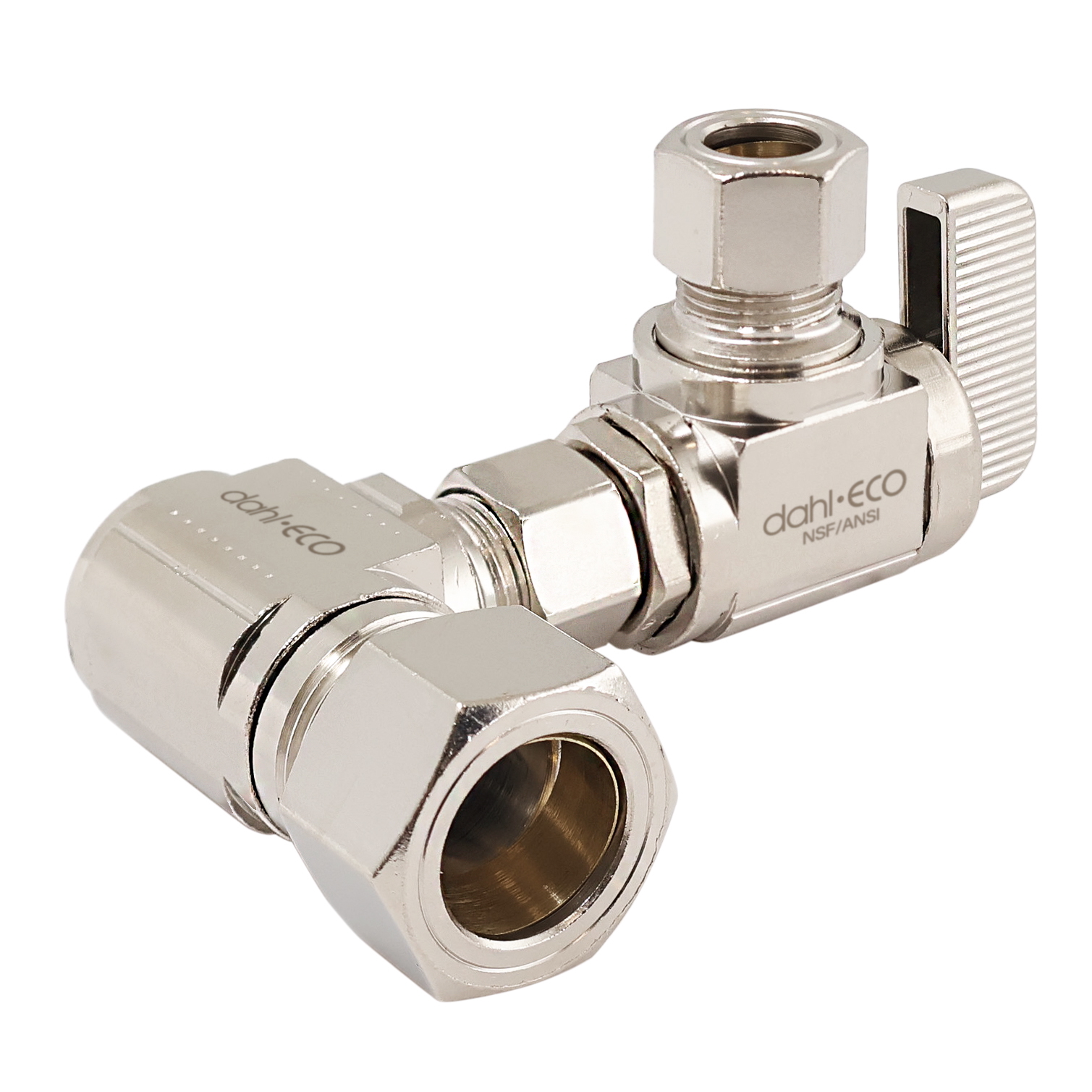

Skirted Toilet Kits E33-2386-A
| Description | 5/8 OD Comp X 3/8 OD Comp |
|---|---|
| Product Type | Skirted Toilet Kit |
| Inlet Pipe Type | Copper |
| Outlet Pipe Type | Copper |
Don't cut open that wall! Use the Skirted Toilet Kit and get the job finished on time with increased customer satisfaction.
Another unique solution from dahl.
Every valve is tested before leaving our factory.
Specifications
| Material | Lead-Free Brass |
|---|---|
| Inlet Size | 1/2 |
| Pattern | Angle |
| Inlet Connection | 5/8 OD Comp |
| Finish | Plated |
| Operation | Plated Handle |
| Outlet Size | 1/4 |
| Inlet | 33 |
| Outlet Connection | 3/8 OD Comp |
| Outlet | 31 |
| Box / Case | 10 / 60 |
Instructions
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
COMPRESSION ON COPPER PIPE: Do not use pipe dope or PTFE tape. Pipe must be clean, de-burred, round, & cut square. Slide nut, then ring, then valve onto pipe. Tighten firmly with small wrench. DO NOT OVER-TIGHTEN. Compression on plastic tube: Follow tube manufacturer's instructions; Special ring, nut, or an insert may be required.
Certifications
- USA Patent
- CSA
- UPC
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
Downloads
Skirted Toilet Kit
