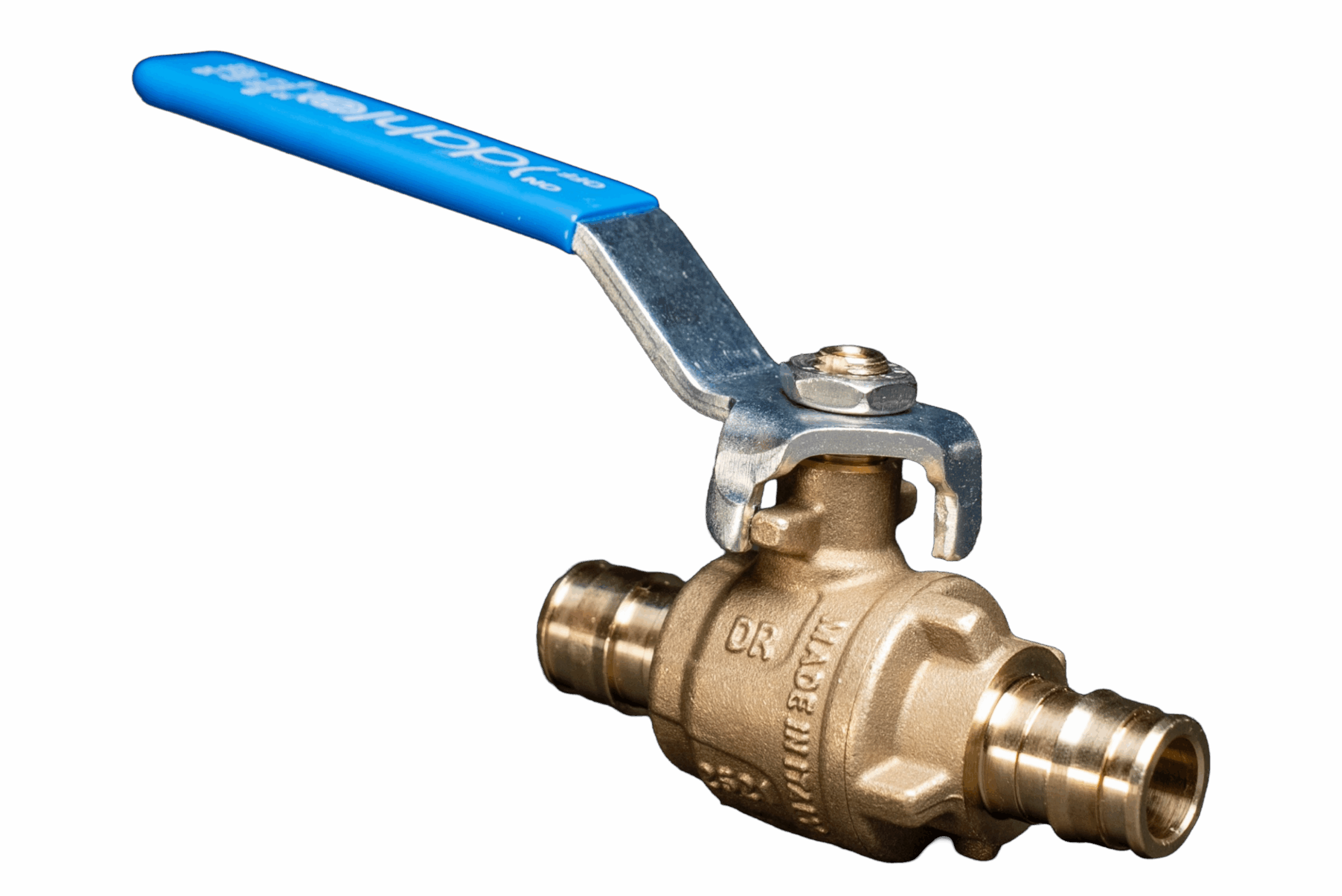

Full Port Ball Valves 500-050-SH-AA
| Description | 1/2 Cold Expansion x 1/2 Cold Expansion |
|---|---|
| Product Type | Full Port Ball Valve |
| Inlet Pipe Type | PEX-F1960 |
| Outlet Pipe Type | PEX-F1960 |
Features & Benefits:
Lead-Free Brass Construction: Dezincification-resistant, lead-free, and sustainable for long-term reliability and safety.
Special Proprietary Coating on the Ball: Ensures superior abrasion and corrosion resistance, extending valve life.
Specifications
| Material | Lead-Free Brass |
|---|---|
| Pattern | Straight |
| Finish | Rough Brass |
| Operation | Plastified Zinc Plated Steel Handle |
| Inlet Size | 1/2 |
| Inlet Connection | Cold Expansion (F1960) |
| Outlet Size | 1/2 |
| Outlet Connection | Cold Expansion (F1960) |
| Box / Case | 10/100 |
Instructions
KEEP IN PACKAGING until installation to remain free of debris. Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
F1960 COLD EXPANSION CONNECTION FOR PEX-A ONLY: Follow tube manufacturer’s instructions.
Warning: Do not attempt to use PEX connections with Poly-B tubing or vice versa.
Certifications
- CSA
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
