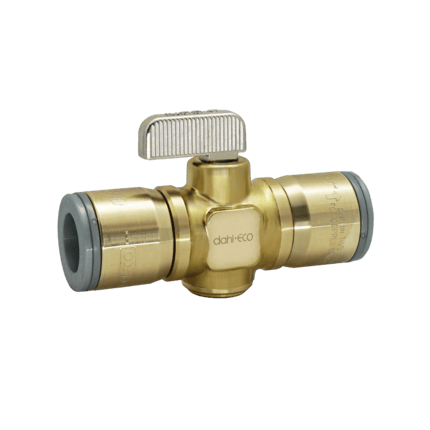

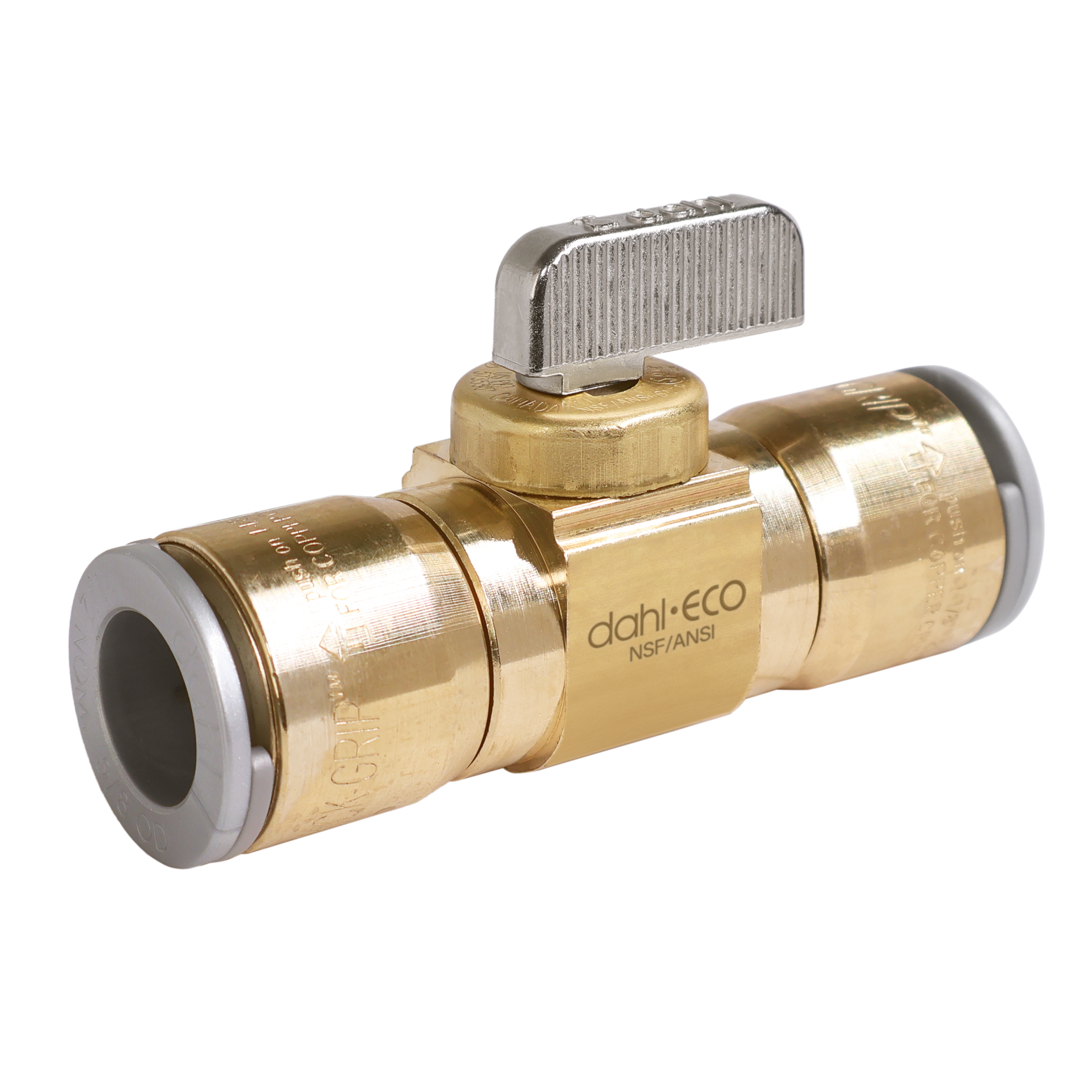

In-Line Stops & Isolation 521LB-QG3-QG3
| Description | 1/2 QUICK-GRIP X 1/2 QUICK-GRIP |
|---|---|
| Product Type | Stop & Isolation Valve |
| Inlet Pipe Type | Copper, PEX, CPVC |
| Outlet Pipe Type | Copper, PEX, CPVC |
Every valve is tested before leaving our factory.
They may build them with something else, but they fix them with these.
Specifications
| Material | Lead-Free Brass |
|---|---|
| Inlet Size | 1/2 |
| Pattern | Straight |
| Inlet Connection | QUICK-GRIP |
| Finish | Rough Brass |
| Operation | Plated Handle |
| Outlet Size | 1/2 |
| Inlet | QG3 |
| Outlet Connection | QUICK-GRIP |
| Outlet | QG3 |
| Box / Case | 12 / 72 |
Instructions
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
QUICK-GRIP™ For 1/2″ Copper, PEX or CPVC pipe, in accessible locations only. NOT for Kitec® , PEX-AL-PEX, Poly-B, plated pipe. Cut pipe & de-burr. Mark pipe 1-1/8″ (2.9 cm) from end. (PEX only: Install pipe insert). QUICK-GRIP™ must be free of debris. Push valve onto pipe to the mark. Pull to test joint. Removal: Remove Locking Clip, depress end of QUICK-GRIP™, pull valve off.
Certifications
- USA Patent
- CSA
- UPC
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
- ASSE 1061
Downloads
Quick Grip
