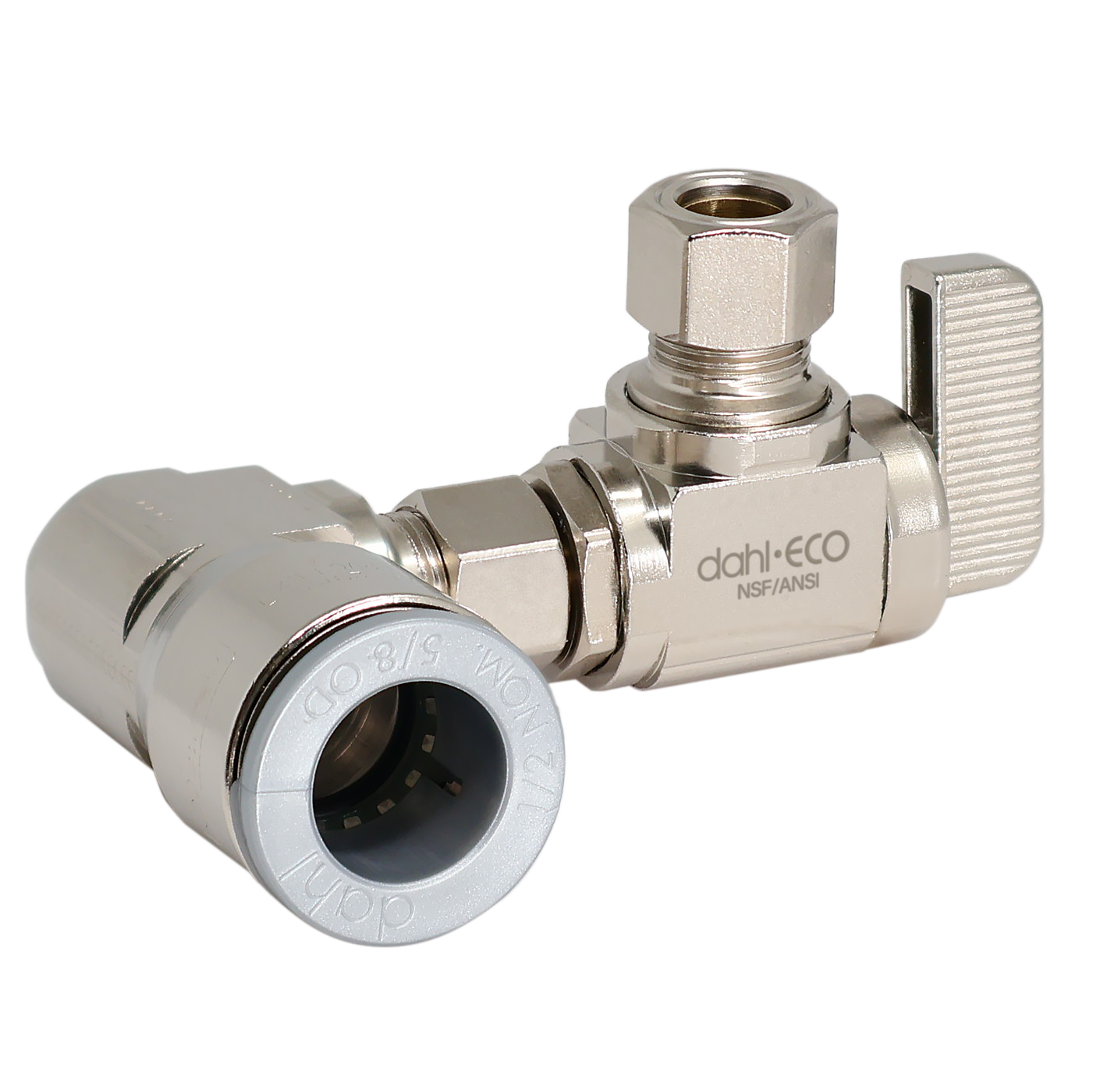

Skirted Toilet Kits EQG3-2386-A
| Description | 1/2 QUICK-GRIP X 3/8 OD Comp |
|---|---|
| Product Type | Skirted Toilet Kit |
| Inlet Pipe Type | Copper, PEX, CPVC |
| Outlet Pipe Type | Copper |
Don't cut open that wall! Use the Skirted Toilet Kit and get the job finished on time with increased customer satisfaction.
Another unique solution from dahl.
Every valve is tested before leaving our factory.
Specifications
| Material | Lead-Free Brass |
|---|---|
| Inlet Size | 1/2 |
| Pattern | Angle |
| Inlet Connection | QUICK-GRIP |
| Finish | Plated |
| Operation | Plated Handle |
| Outlet Size | 1/4 |
| Inlet | QG3 |
| Outlet Connection | 3/8 OD Comp |
| Outlet | 31 |
| Box / Case | 10 / 60 |
Instructions
Turn off water supply. Install product. Turn on water supply, check for leaks. dahl assumes no responsibility for failure due to improper installation. Abide by local plumbing codes. Do not expose to corrosive agents.
QUICK-GRIP™ For 1/2" Copper, PEX or CPVC pipe, in accessible locations only. NOT for Kitec® , PEX-AL-PEX, Poly-B, plated pipe. Cut pipe & de-burr. Mark pipe 1-1/8" (2.9 cm) from end. (PEX only: Install pipe insert). QUICK-GRIP™ must be free of debris. Push valve onto pipe to the mark. Pull to test joint. Removal: Remove Locking Clip, depress end of QUICK-GRIP™, pull valve off.
COMPRESSION ON COPPER PIPE: Do not use pipe dope or PTFE tape. Pipe must be clean, de-burred, round, & cut square. Slide nut, then ring, then valve onto pipe. Tighten firmly with small wrench. DO NOT OVER-TIGHTEN. Compression on plastic tube: Follow tube manufacturer's instructions; Special ring, nut, or insert may be required.
FEMALE COMPRESSION: Do not use pipe dope or PTFE tape. Tighten firmly with small wrench. DO NOT OVER-TIGHTEN.
Certifications
- CSA
- UPC
- NSF/ANSI/CAN 372 NSF/ANSI/CAN 61: Q≤0.5
- ASSE 1061
Downloads
Quick Grip
Skirted Toilet Kit
